HME Filter (Adult & Pediatric)

Product Code : MM-HME (MM Care™)

Key Features

Dual Function: Provides both heat/moisture exchange and bacterial/viral filtration
Filtration Efficiency: ≥ 99.99% for bacteria and viruses
Low Resistance to Flow: Maintains optimal respiratory dynamics
Lightweight & Compact: Minimizes circuit drag and patient discomfort
Transparent Housing: Allows visual inspection of secretions or blockages
Universal 15F/22M & 15M/22F Connectors: Compatible with standard breathing circuits and ventilators
Latex-Free & DEHP-Free: Safe for sensitive patient populations
Sterile & Single-Use: Helps maintain aseptic conditions in critical care

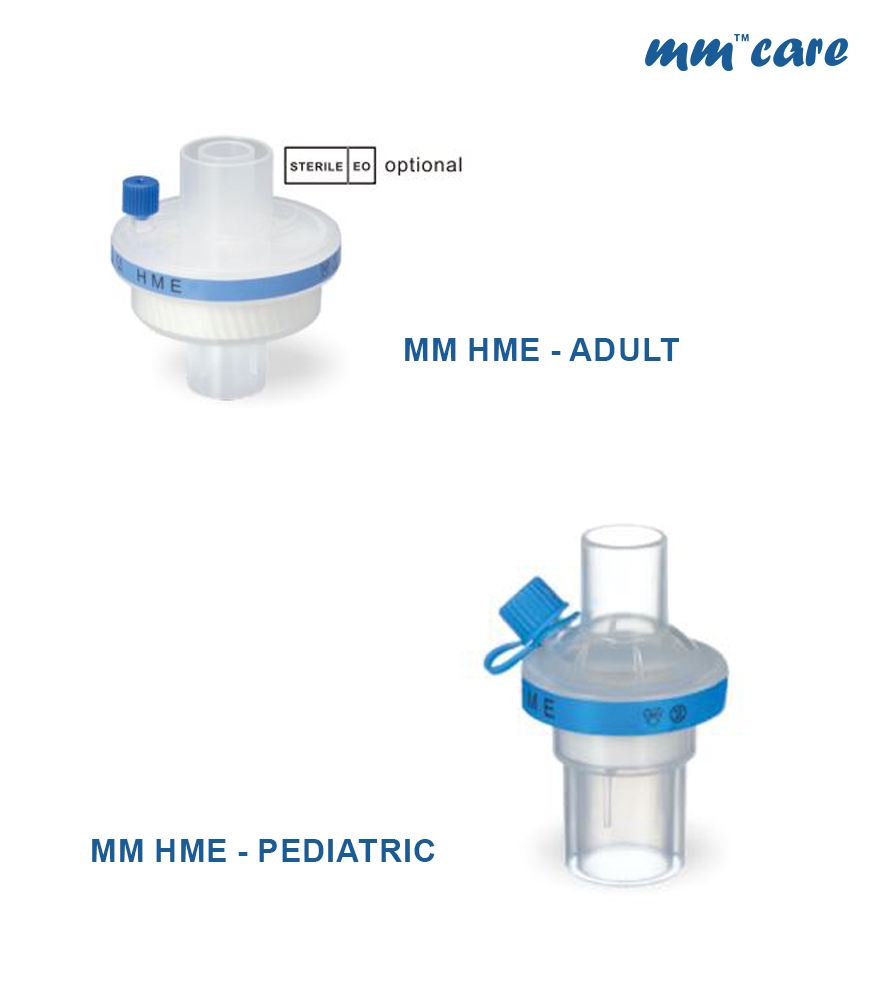

Available Sizes

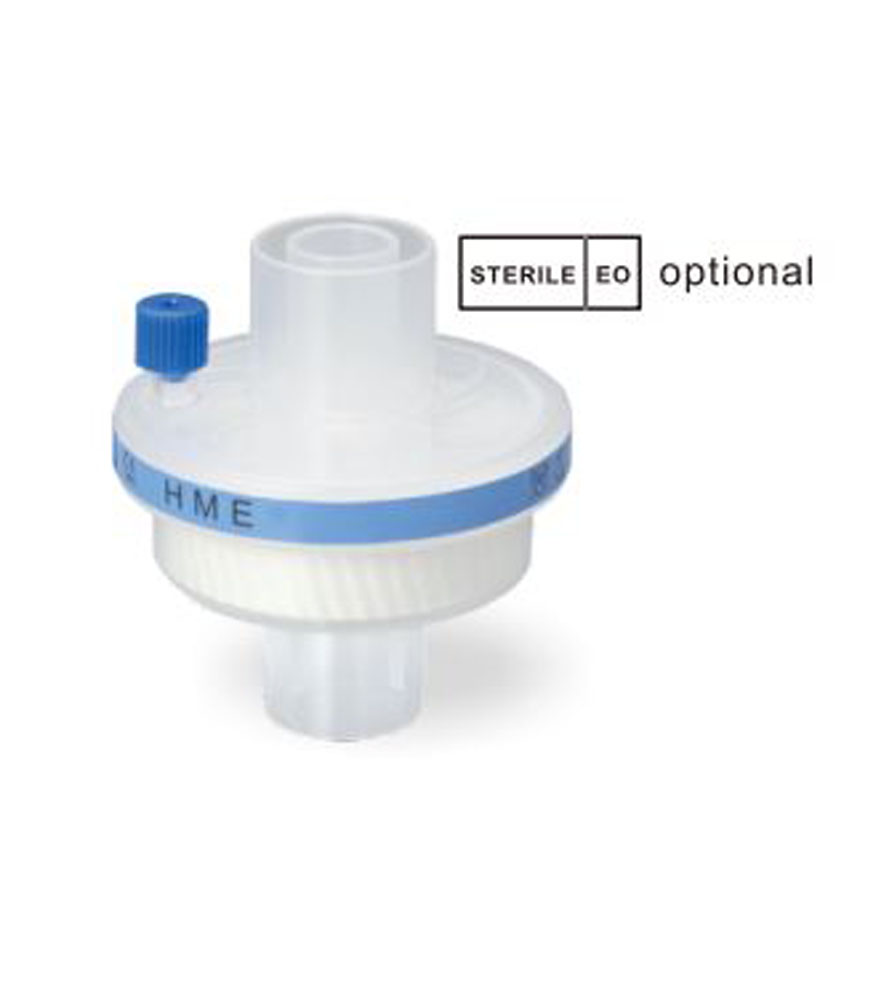

Adult HME Filter: Optimized for standard tidal volumes and humidification needs

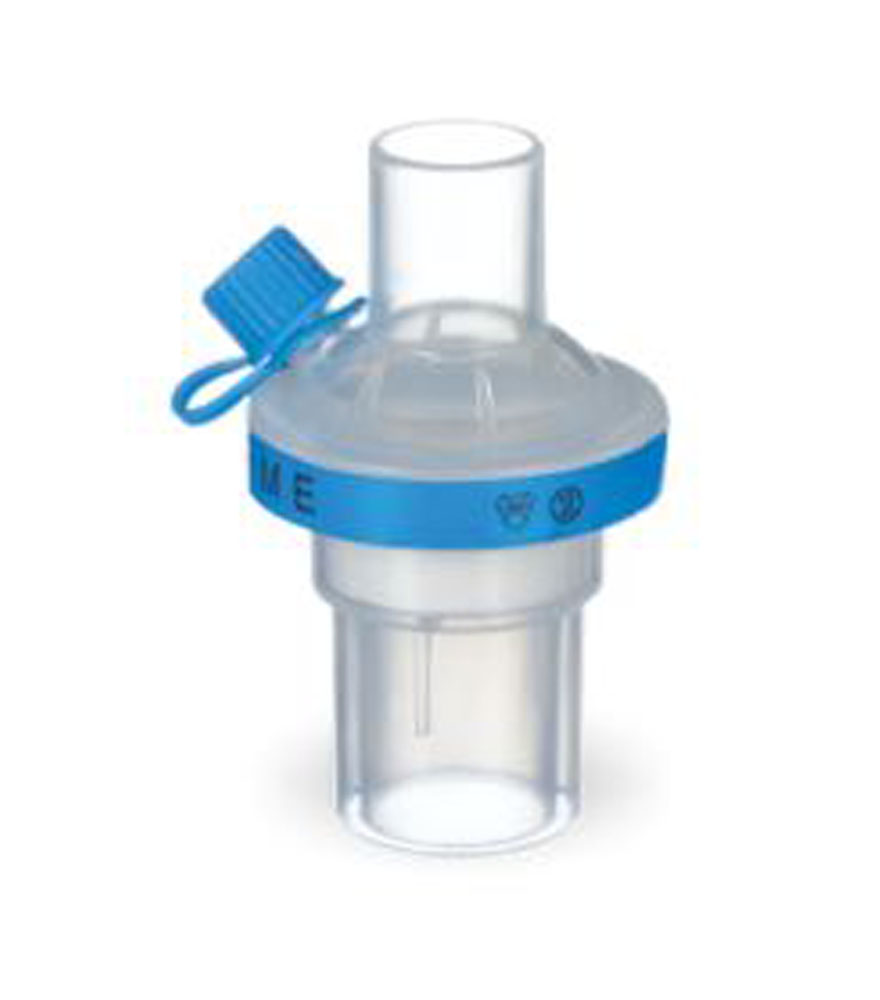

Pediatric HME Filter: Lower resistance and dead space for small lungs

Description

The MM Care™ Heat and Moisture Exchange (HME) Filter is a sterile, single-use respiratory device designed to retain heat and moisture from a patient’s exhaled air and filter airborne contaminants, ensuring clean, humidified air for patients on ventilators or anesthesia circuits. Available in Adult and Pediatric sizes, the HME filter supports efficient airway conditioning while reducing the risk of cross-contamination and ventilator-associated infections (VAP).

Technical Specifications

Attribute	Adult HME Filter	Pediatric HME Filter
Filtration Efficiency	≥ 99.99% (Bacteria/Virus)	≥ 99.99% (Bacteria/Virus)
Dead Space	~42 mL	~10 mL
Tidal Volume Range	>126 mL	>50 mL
Resistance	<2.5 cm H₂O @ 30 L /min	<2.0 cm H₂O @ 10 L /min
Moisture Output	≥ 36 mg H₂O/L	≥ 36 mg H₂O/L
Connector Size	15F/22M & 15M/ 22F (standard)	15F/22M & 15M/ 22F (standard)
Material	Medical-grade, latex-free plastic	Medical-grade, latex-free plastic
Sterilization	EO (Ethylene Oxide)	EO (Ethylene Oxide)
Packaging	Individually packed, sterile	Individually packed, sterile
Usage	Single-use only	Single-use only
Certification	ISO Certified	ISO Certified
