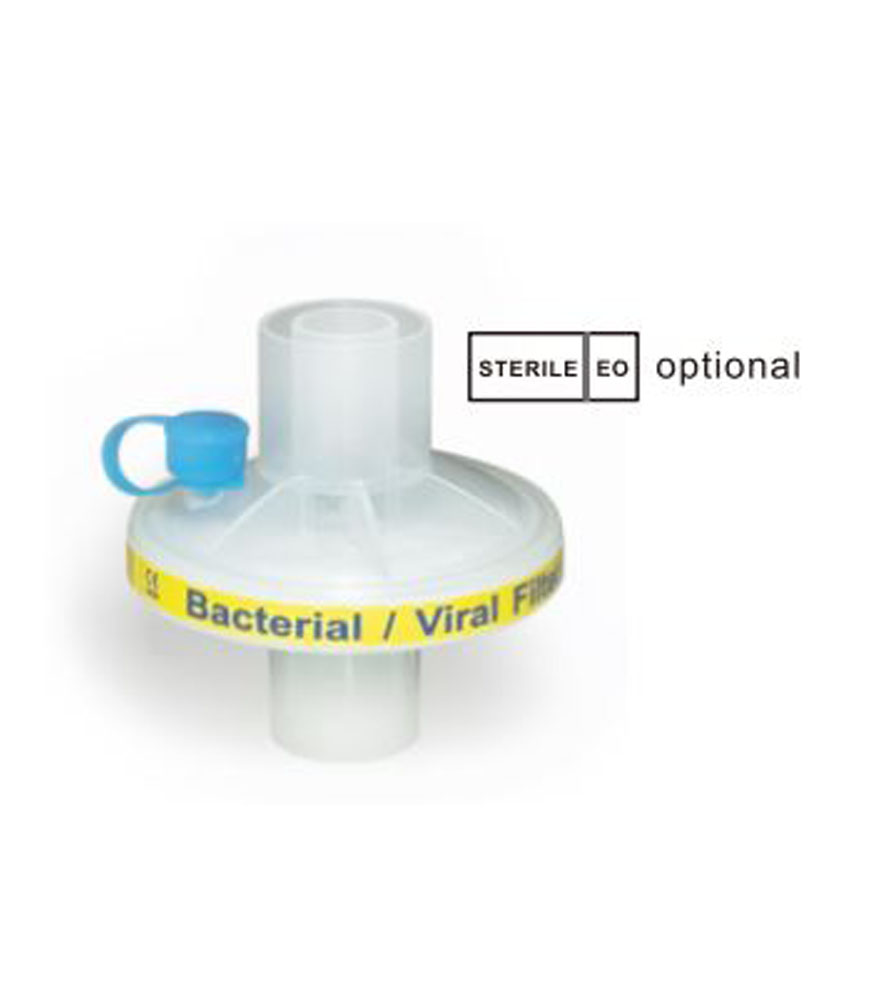

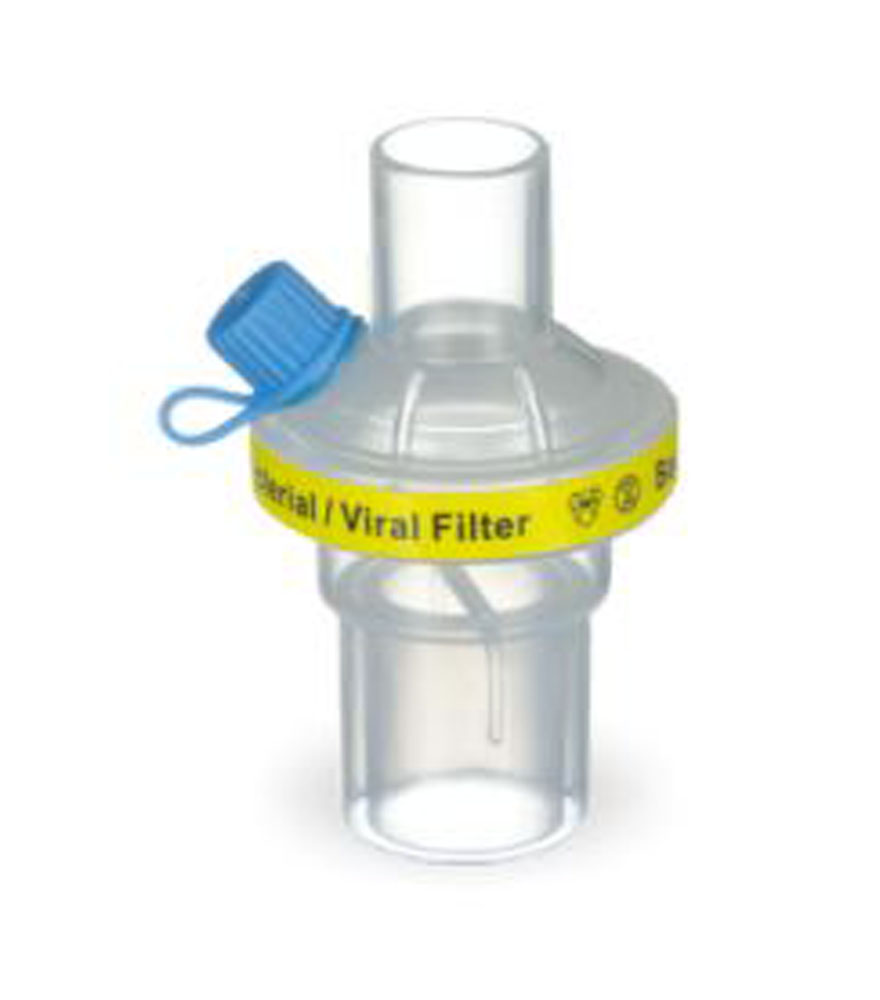

Bacterial Viral Filter (Adult & Pediatric)

Product Code : MM-BVF (MM Care™)

Key Features

High Filtration Efficiency: ≥ 99.999% for bacteria and viruses
Low Resistance to Flow: Maintains ventilator performance and patient comfort
Universal Connectors: 15F/22M & 15M/22F – compatible with all standard breathing circuits
Transparent Housing: Allows visual inspection of secretions or blockage
Lightweight & Compact: Reduces strain on circuits and patient interface
Latex-Free & DEHP-Free: Safe for all patients, including those with sensitivities
Sterile & Single-Use: Ensures infection prevention in clinical environments

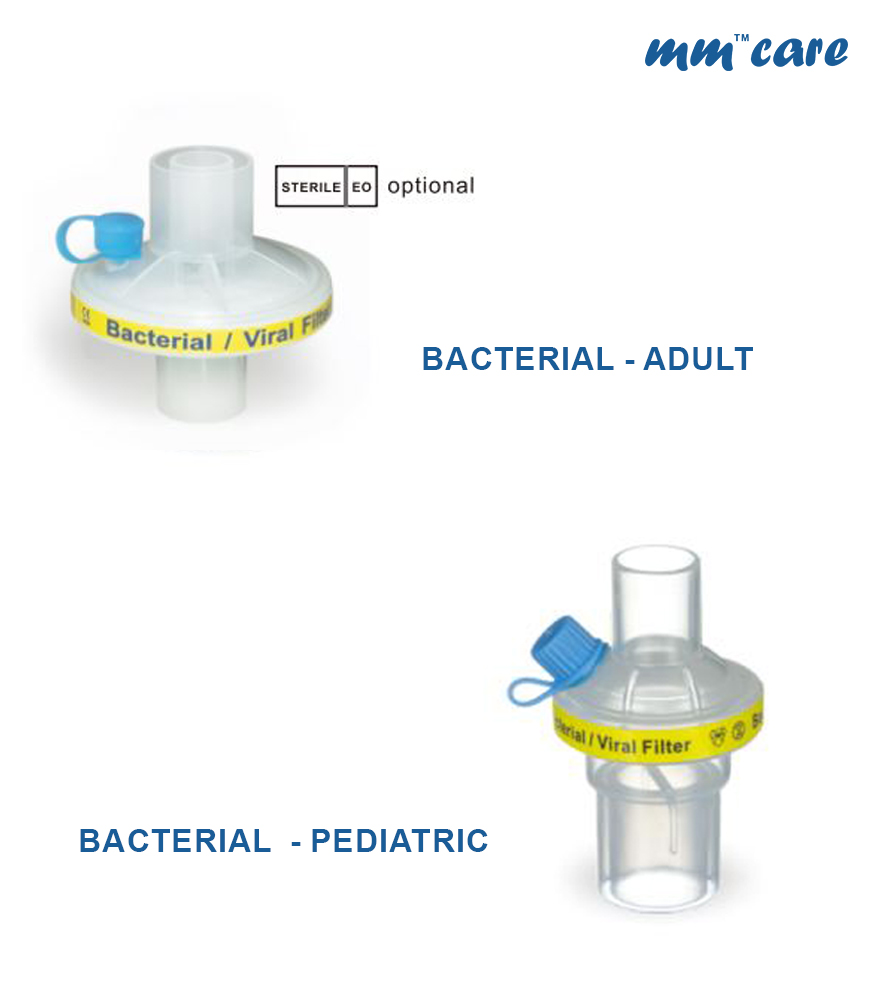

Available Sizes

Adult BV Filter: Optimized for standard ventilator use
Pediatric BV Filter: Designed with reduced dead space and resistance

Description

The MM Care™ Bacterial Viral Filter (BV Filter) is a high-efficiency, single-use, sterile respiratory filter designed to prevent cross-contamination and protect both patients and equipment during ventilation and anesthesia. Suitable for Adult and Pediatric patients, the BV Filter offers excellent filtration performance while maintaining low resistance to airflow—ensuring safety, comfort, and compatibility across all major respiratory systems.

Technical Specifications

Attribute	Adult BV Filter	Pediatric BV Filter
Filtration Efficiency	≥ 99.999% (Bacterial & Viral)	≥ 99.999% (Bacterial & Viral)
Dead Space	~36 mL	~15 mL
Tidal Volume Range	>108 mL	>108 mL
Resistance to Flow	<2.0 cm H₂O @ 30 L /min	<1.5 cm H₂O @ 10 L /min
Connector Size	≥ 36 mg H₂O/L	≥ 36 mg H₂O/L
Connector Size	15F/22M & 15M/22F (Standard)	15F/22M & 15M/22F (standard)
Material	Medical-grade, latex-free polymer	Medical-grade, latex-free polymer
Sterilization Method	EO (Ethylene Oxide)	EO (Ethylene Oxide)
Packaging	Individual sterile blister pack	Individual sterile blister pack
Usage	Single-use only	Single-use only
Certification	ISO Certified	ISO Certified
